ropepearsocket

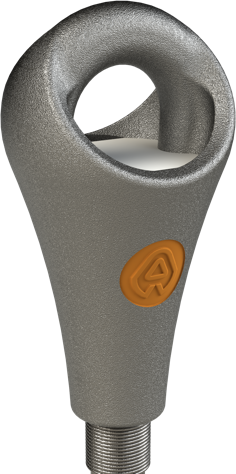

Rope pear socket

The ideal rope termination to connect your steel wire ropes

The most reliable and safest rope pear socket

Suitable for all your (compacted) steel wire ropes

All sizes available from stock, worldwide availability

Supported crane types

Mobile Harbour crane

Ship Unloader

Transshipment / Floating crane

Level-Luffing crane

Supported materials

Bauxite

Coal

Iron ore

Aggregates

Cereals

Other

Characteristics standard

Minimal breaking load: 10.000 -240.000 kg
Safe workloads: 1.500-42.500 kg (grab duty)
Design: robust
Material: High-grade wear-resistant casted steel
Fit: Optimal fit and suited for trolley or crane sheave passage
Reusable: yes
Safety: Simple, safe and reliable with a long
life-expectancy



Characteristics type S

Minimal breaking load: 70.000 - 215.000 kg
Safe workloads: 11.000 - 36.000 kg (grab duty)
Design: robust
Material: High-grade wear-resistant casted steel
Fit: Optimal fit for compacted steel wire rope and suited for trolley or crane sheave passage
Reusable: yes
Safety: Simple, safe and reliable with a long
life-expectancy

quick-release-link-and-rope-pear-socket-brochure
Get the product brochure

and learn more about applicability

01 Features & Specifications
Features & Specifications

How the Rope Pear Socket connects everything

The Rope Pear Socket is an end connection especially designed by Nemag for steel wire rope.

Product-Feature-Placeholder-V2-01

Long lifespan

For the longest lifespan and great safety, our Rope Pear Sockets are made out of high-grade austenitic manganese steel. That is why they generally last longer than steel wire ropes.

Product-Feature-Placeholder-V2-02

Standard & S-range

The standard range of Rope Pear Sockets is available for almost all of your steel wire ropes. For special high strength wire ropes – like compacted steel wire ropes – we have invented the S-series Rope Pear Sockets: ideal to be used in combination with your 8-strand steel wire ropes.

Product-Feature-Placeholder-V2-03

Increased safety

Our Rope Pear Socket increases safety and is designed to smoothly pass over cable sheaves. The sockets can be fitted by means of a 2-component resin or by hot socketing.

Additional features & specifications

Advantages of the Rope Pear Socket

  • The Rope Pear Socket is
    designed to, in combination with the
    Nemag Quick Release Link, smoothly
    pass over cable sheaves.

  • The life span of the Rope Pear Socket generally surpasses that of the steel wire rope.

  • It can be fitted by casting with a 2-component casting mass without the need for outside assistance, and ensures a strong connection.

  • Our range of Rope Pear Sockets
    is suited to any type of steel wire
    rope.

How does the design affect rope fatigue?
A characteristic of our rope pear socket is the decreased steel wire rope fatigue upon passing the cable sheave thanks to optimised design
What is the advantage of austenic manganese steel?

The Nemag Rope Pear Socket is cast from high-grade austenic manganese steel and generally lasts longer than the steel wire rope itself.

Austenic manganese steel combines a great thoughness and a high resistance to wear.

Quality Assurance

Built to perform
Proven before it ships

Engineered. Tested. Documented. Every grab is verified against documented standards before it leaves our workshop. From simulation and material selection to final inspection, performance is validated before it reaches your terminal.

Product-Feature-Placeholder-04-1

Designed for heavy duty, verified in simulation

Before production begins, geometry, load paths, and structural behavior are analyzed using Finite Element Analysis (FEA). Critical wear zones are reinforced and material choices are validated to ensure durability in demanding bulk applications.

Product-Feature-Placeholder-05-1

Everything quality build – all the way from plate to paint

From CNC-cut plates to qualified welding and final assembly, each grab is produced under documented procedures. Material traceability and in-process checks ensure consistent build quality at every stage.

Product-Feature-Placeholder-06-1

Inspected and documented before it ships

Every grab undergoes a structured 60-point inspection during manufacturing and final acceptance testing. Dimensions, weld quality, and functional performance are verified and recorded before shipment.

More on Quality Assurance

Request a quote

Request a quote tailored to your operation and performance requirements.
Success stories

Optimized performance

Discover how terminals and transshipment crews use our grabs to get shorter cycles, cleaner hatches, and fewer unplanned stops.

SMT Shipping
Social post SMT 5
Marc Smeets

SMT Shipping

"Our handling speed increased from 1,000 to 1,250 tons per hour. The NemaX paid for itself more than four times in its first year. "

VLI Pecém
vli pecem nemax grab 05
Paulo Ribeiro

VLI Pecém

"We now unload a ship in four days instead of five. Savings in demurrage costs are considerable, to say the least."

We're also proud to partner with these Original Equipment Manufacturers

Service & Maintenance

Keep your operation on schedule.

Planned inspections, clear maintenance guidance, and fast technical support help you avoid unplanned downtime. From commissioning to long-term operation, Nemag supports the performance of your grab throughout its entire lifecycle.

Product-Feature-Placeholder-V4-08

Lifecycle support from day one

A grab is a complex piece of equipment that cannot simply be sent back to the factory when questions arise. That is why Nemag supports customers on-site and remotely with practical guidance, troubleshooting, and operator training.

From start-up and commissioning to performance optimization and wear assessment, our engineers help ensure your grab operates as intended in real-world conditions.

Product-Feature-Placeholder-Double-V2
Product-S&M-Placeholder

Service & maintenance

From commissioning to years of operation, we support our customers throughout the full lifecycle of the grab. Our service teams provide technical assistance, inspections, and guidance whenever needed, helping operators keep performance predictable over time.

Service & maintenance
Product-SP-Placeholder

Spare parts availability

All spare parts remain available throughout the entire lifetime of the grab. This ensures repairs, replacements, and upgrades can be carried out without uncertainty, even many years after delivery.

Spare parts availability
Product-PI-Placeholder

Documentation & guidance

Each grab is delivered with comprehensive manuals, inspection guidelines, and welding instructions. Combined with the manufacturing data book, this documentation provides full transparency and supports safe operation, maintenance, and repairs.

Documentation & guidance

Grab selection can be hard

Selecting the right grab and ensuring you got all the information for your team can be a challenge. Most common questions are listed below, still need help then contact us.
Safety and compliance accountability for Nemag equipment?

Our grabs are designed to help reduce risk through engineering details (e.g., accessible harness points, smooth/flush contours), and are validated with documented processes (e.g., 60-point inspections, International Organization for Standardization (ISO) 9001 certificates, Finite Element Analysis (FEA) summaries, proof-load testing).

Safe operation always depends on trained personnel, correct procedures, and the crane/terminal’s own safety policies.

Maintenance and lead time on spare parts?

Planned inspections at regular cycle intervals (e.g., basic checks around 10 000 cycles; deeper inspections around 100 000 cycles) are recommended by Nemag.

Wear parts and kits are available and can be delivered with your purchase.

Typical dispatch target for stocked parts is under 48 hours to keep downtime low.
